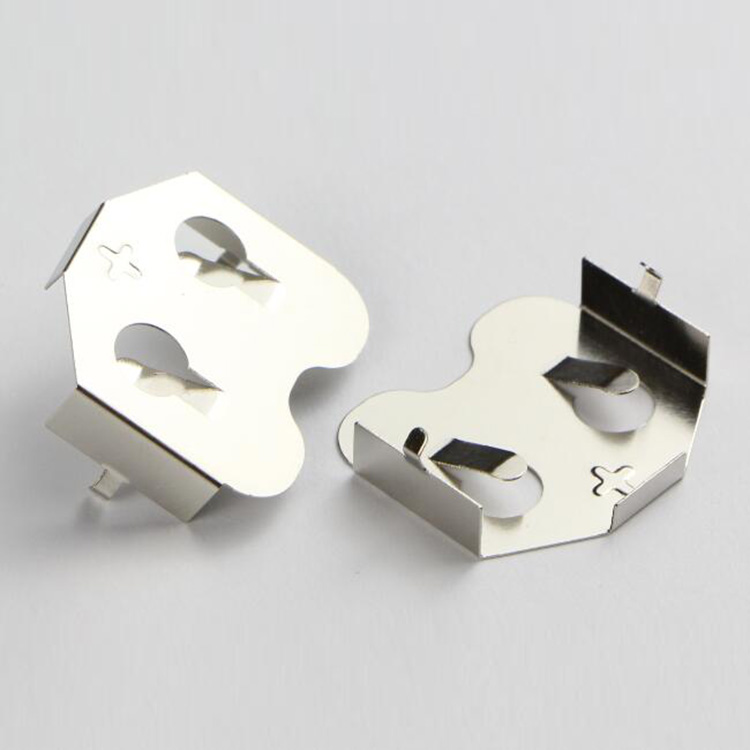

Product Name: BI-2477-1 DIP hardware battery clip holder
Product Model: BI-2477-1 DIP
Click Times: Times
| Model: |
BI-2477-1 DIP hardware battery holder |
| Stype/ Function: |
Holder / clip / contact |
| Battery cell size: |
diameter： 24.5mm height： 7.7mm |
| Applied for: |
1 piece CR2477 battery |
| Number of cells: |
1 |
| Mounting type: |
PC through hole type |
| Termination stype: |
2 PC pins |
| Material: |
phosphor bronze |
| Surface Plating: |
Nickel plated |
| thickness |
0.25mm |
| Dimensions: |
see the reference drawing(24.5x7.7mm) |
| Color |
silver |
| Environmental Information: |
SGS / RoHS Compliant |
| Operating Temperature : |
-25~85℃ |
| Packing : |
plastic bag +carton (in bulk) |
| Suitable for: |
Medical equipment,digital toys,mainboard ,fire-fighting equipment etc. |
|
