HY9-1 9v battery snap/connector/Clip I type
HY9-1 9v battery snap/connector/Clip I type

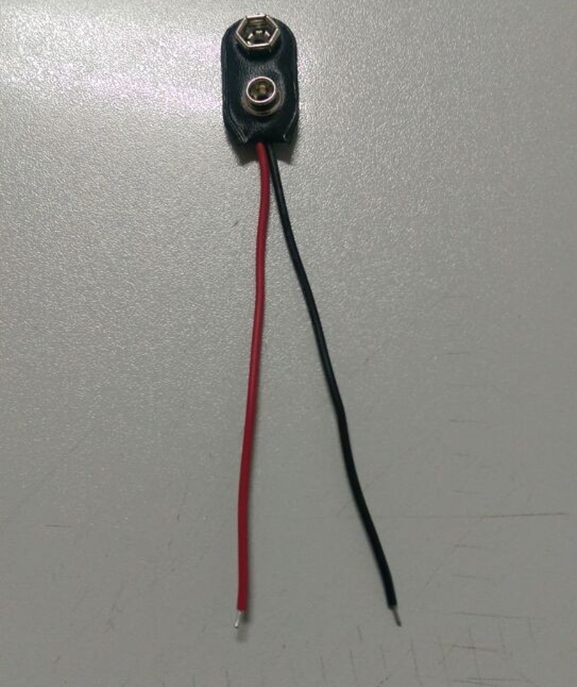

Product Name: HY9-1 9v battery snap/connector/Clip I type
Product Model: HY9-1
Click Times: Times
Model: HY9-1  9v battery snap/connector/Clip I type
Type: I or T type
Battery cell size:  9V
Applied for: battery alkaline 9V, lithium battery 9V, batterty Zinc 9V  such as : 6F22, 6LR61etc.
Number of cells: 1
Mounting type: Free Hanging

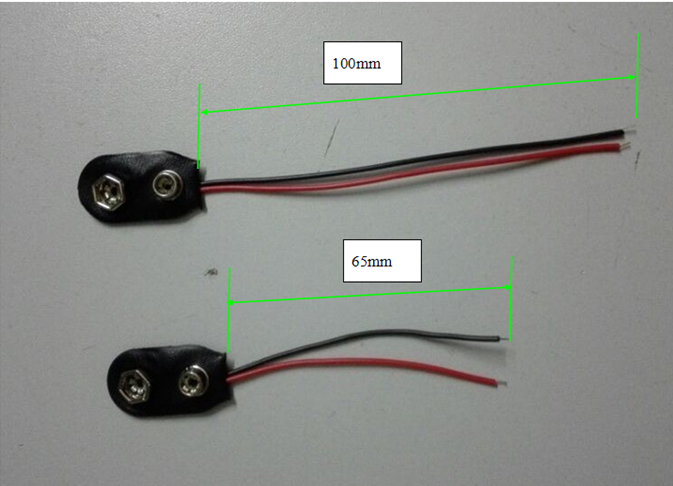

Termination stype: length of wire leads( red /black ): 4" (101.6mm) or  customized
guage of wire leads( red /black ): 24 /26/28AWG(UL1007)
Material: jacket part :  soft PVC or hard plastic
connector part: brass or stainless iron+nickel plate
Jacket Color Black
Environmental  Information: Lead free / RoHS Compliant
Packing : PE bag +carton
Previous     【Next】
Product Details
Model: HY9-1  9v battery snap/connector/Clip I type
Type: I or T type
Battery cell size:  9V
Applied for: battery alkaline 9V, lithium battery 9V, batterty Zinc 9V  such as : 6F22, 6LR61etc.
Number of cells: 1
Mounting type: Free Hanging
Termination stype: length of wire leads( red /black ): 4" (101.6mm) or  customized
guage of wire leads( red /black ): 24 /26/28AWG(UL1007)
Material: jacket part :  soft PVC or hard plastic
connector part: brass or stainless iron+nickel plate
Jacket Color Black
Environmental  Information: Lead free / RoHS Compliant
Packing : PE bag +carton
Delivery Time: Common Order: 1-2days
Payment Term: Paypal, T/T
