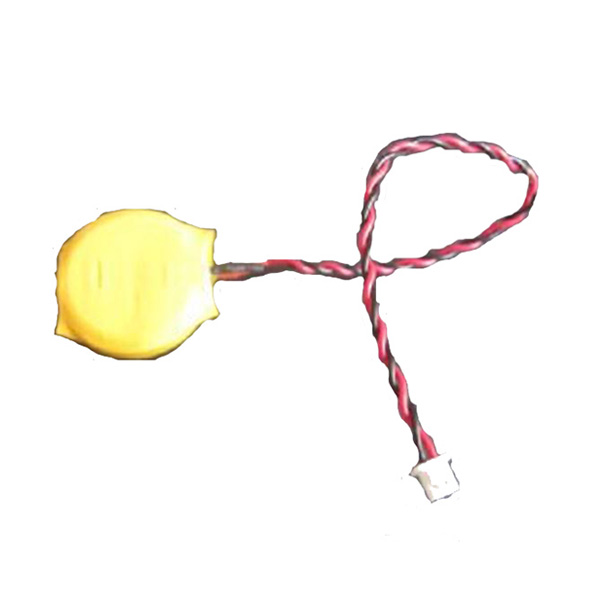

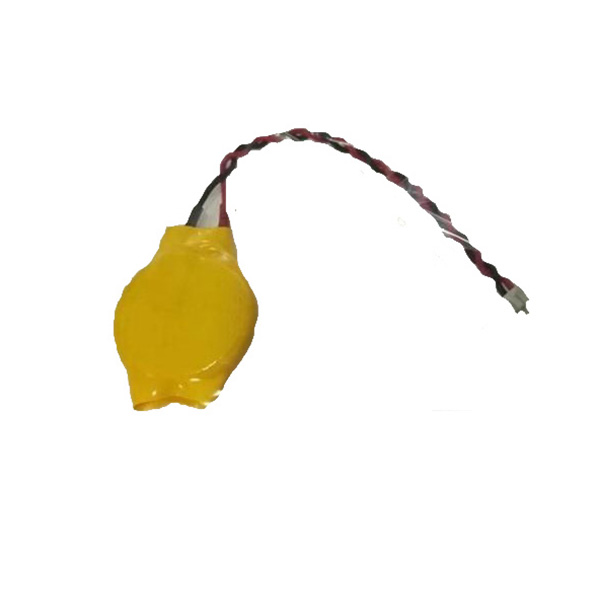

Product Name: CR2032 with wires leads and terminal connector
Product Model: CR2032-wire leads
Click Times: Times
| Model: |
CR2032 lithium button cell battery with wire leads and connector |
| Nominal voltage: |
3V |
| Nominal capacity: |
210mAH |
| Outside Size: |
20 x 3.2mm |
| cut-off voltage: |
2V |
| Open-circuit Voltage: |
3.25~3.45V |
| standard discharge current(mA): |
0.2 |
| Recommended Pulse Drain(mA): |
15 |
| Recommended Continuous Drain(uA): |
5 |
| Type of tabs: |
2 wire leads ( 60mm or 100mm long) |
| type of connector: |
1.25mm , 2.0mm, 2.54mm |
| Chemical System: |
Lithium button battery (Non-Hg, Non-Cadmium) |
| cap/case material: |
stainless Iron |
| Self -discharge rate: |
Less than 3% |
| Guarantee: |
one year |
| Operating Temperature : |
-20~60℃ |
| Storage condition: |
20°c∼25°c, RH<75% |
| Weight: |
3.1g |
| Application: |
Electronic clock&watch, Electronic toys,LED light, computers, music cards, medical instruments, PDA, MP3, shoe lamps, card-style radio, IC Card and other electronic product,etc. |
| Packing : |
tray bulk or blister card |
|
