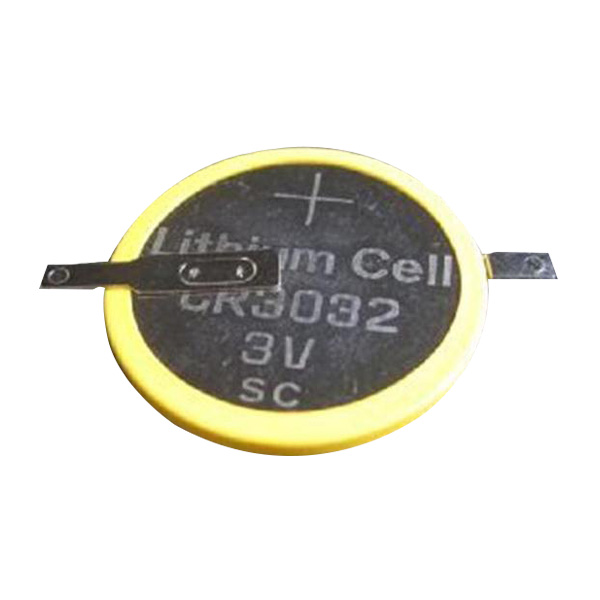

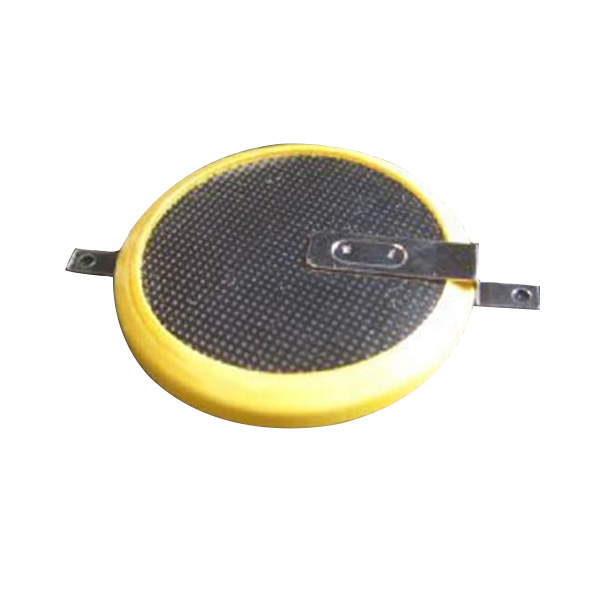

Product Name: CR3032 button cell battery with SMT tabs
Product Model: CR3032-solder tabs
Click Times: Times
| Model: |
CR3032 lithium button cell battery with SMT tabs for POS machine |
| Nominal voltage: |
3V |
| Nominal capacity: |
500mAH |
| Outside Size: |
30 x 3.2mm |
| cut-off voltage: |
2V |
| Open-circuit Voltage: |
3.25~3.45V |
| standard discharge current(mA): |
|
| Recommended Pulse Drain(mA): |
|
| Recommended Continuous Drain(uA): |
|
| Type of tabs: |
SMT 2 pins |
| Chemical System: |
Lithium button battery (Non-Hg, Non-Cadmium) |
| cap/case material: |
stainless Iron |
| Self -discharge rate: |
Less than 3% |
| Guarantee: |
one year |
| Operating Temperature : |
-20~60℃ |
| Storage condition: |
20°c∼25°c, RH<75% |
| Weight: |
8g |
| Certificate: |
RoHS ,SGS |
| Application: |
Electronic clock&watch, Electronic toys,LED light, computers, music cards, medical instruments, PDA, MP3, shoe lamps, card-style radio, IC Card and other electronic product,etc. |
| Packing : |
tray bulk + carton |
| Delivery Time: |
Common Order: 1-2days |
|
